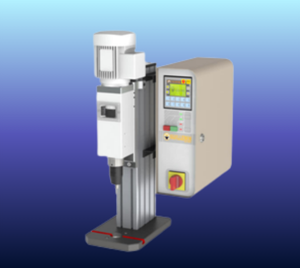

GUILLEMIN Orbital Riveting machines
GUILLEMIN orbital riveting machines are precision-engineered for high-accuracy forming and fastening applications. Designed with a rigid frame structure and powered by an asynchronous motor, these machines deliver stable performance, repeatable accuracy, and versatile control for high-quality riveting results.
Overview
Built for durability and performance, GUILLEMIN orbital riveters feature a motorized spindle, adjustable stroke control, and pneumatic or hydraulic thrust options — making them ideal for industries requiring tight tolerances, such as automotive, aerospace, electronics, and industrial hardware.
Features
- Orbital riveting spindle powered by asynchronous motor
- High-rigidity frame ensures structural stability during operation
- Thrust system available with pneumatic or hydraulic cylinder
- Fine spindle stroke adjustment via micrometric vernier (50 μm resolution)
- Capable of achieving high riveting accuracy (≤ 0.1 mm)
- Low-maintenance, high-durability mechanical design
- Suitable for metals, bushings, and delicate assemblies
- Adaptable for automated or manual workstation integration
Specifications
- Drive Type: Asynchronous motor
- Spindle Stroke Adjustment: Vernier-controlled, 50 μm increments
- Thrust Mechanism: Pneumatic or hydraulic cylinder (configurable)
- Accuracy: Better than 0.1 mm (≤ 1/10 mm)
- Frame: High-rigidity steel construction
- Application Scope: Orbital riveting of fasteners and mechanical joints , Assembly of metal or plastic components , Precision hardware production , Low-noise forming processes
