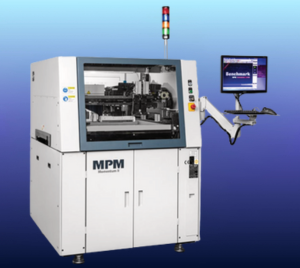

ITW EAE Momentum II 100
The Momentum II 100 from ITW EAE is a value-engineered stencil printer that delivers unmatched speed, precision, and reliability in its class. Designed for flexibility and ease of use, it meets the demands of high-yield surface mount technology (SMT) printing applications. Built on the proven Momentum II platform, this printer offers scalable functionality, enabling manufacturers to enhance capabilities as production needs grow.
Overview
The Momentum II 100 represents a powerful yet economical solution for PCB printing. Ideal for medium to high-volume environments, it combines a compact footprint with the robust performance of the Momentum II series. This printer is designed to grow with your production demands—users can add patented innovations and features as throughput requirements evolve, ensuring long-term value and operational scalability.
Features
- High Speed & Accuracy: Industry-leading print precision ensures consistent, high-quality results.
- Scalable Design: Modular platform allows upgrades and retrofits to meet increasing production demands.
- User-Friendly Interface: Intuitive controls and software for simplified setup and operation.
- Compact Footprint: Space-saving design fits easily into most production environments.
- Proven Reliability: Built on the widely adopted Momentum II series, trusted by top-tier manufacturers globally.
- Cost-Effective: Delivers premium performance at a competitive price point.
Specifications
- Parameter Details
- Machine Type SMT Stencil Printer
- Model Momentum II 100
- Print Accuracy ±12.5 microns @ 6σ
- Cycle Time < 10 seconds per board (excluding load/unload)
- Board Size Capacity Up to 508 x 508 mm (20” x 20”)
- Stencil Size Up to 736 x 736 mm (29” x 29”)
- Controller Windows-based, touchscreen user interface
- Vision System High-resolution 2D inspection
- Repeatability ±2 microns
- Power Requirements 200–240V, 50/60 Hz
- Air Supply 5.5–6.9 bar (80–100 psi)
- Footprint Compact, space-efficient design
- Upgradability Supports patented features & automation options
