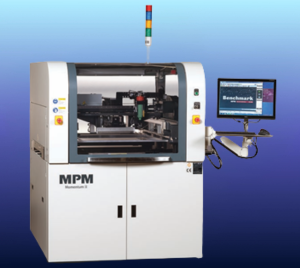

ITW EAE Momentum II HiE
The Momentum II Hi-E (High Efficiency) from ITW EAE is a high-performance SMT stencil printer designed for maximum speed, precision, and efficiency. Featuring a servo-driven vision gantry system and advanced 2D inspection technologies, the Hi-E model delivers faster throughput and reduced cycle times—making it ideal for high-volume electronics manufacturing.
Overview
The Momentum II Hi-E is the go-to solution for manufacturers demanding high throughput and precise print quality. This single-rail model is powered by fast and responsive servo motors that outperform traditional stepper systems, enhancing speed across all axes of the vision gantry (X, Y, Z). It also features ITW EAE’s proprietary BridgeVision™ and StencilVision™ inspection systems—offering powerful contrast and texture-based 2D inspection capabilities to ensure optimal print quality and defect detection in real time.
Features
- High-Efficiency Servo Motor Control: Outpaces stepper-driven systems to reduce print cycle time.
- Single-Rail Transport: Designed for streamlined board handling and fast throughput.
- Advanced 2D Inspection: Includes BridgeVision™ and StencilVision™ technologies for superior post-print defect detection.
- Compact & Scalable: Built on the robust Momentum II platform with a space-saving footprint.
- Optimized for High-Volume Production: Perfect for demanding SMT environments requiring speed and consistency.
- User-Friendly Interface: Intuitive touchscreen interface for easy setup, operation, and diagnostics.
Specifications
- Parameter Details.
- Machine Type High-Efficiency SMT Stencil Printer.
- Model Momentum II HiE.
- Print Accuracy ±12.5 microns @ 6σ.
- Cycle Time Optimized (faster than traditional Momentum II models).
- Transport System Single-rail conveyor system.
- Vision System Servo-driven with X, Y, Z axis motion.
- Inspection Technologies 2D Inspection with BridgeVision™ and StencilVision™.
- Board Size Capacity Up to 508 x 508 mm (20” x 20”).
- Stencil Size Up to 736 x 736 mm (29” x 29”).
- Repeatability ±2 microns.
- Controller Windows-based touchscreen interface.
- Power Requirements 200–240V, 50/60 Hz
- Air Supply 5.5–6.9 bar (80–100 psi)
- Footprint Compact and factory-floor efficient
- Upgradability Compatible with Momentum II enhancements & smart features
