ITW – Electrovert Cleaners (Aquastorm 50 Batch PCB Cleaner)
Advanced Batch PCB Cleaner with In-line Capabilities As PCBs evolve with higher density, greater complexity, and miniaturization, manufacturers using batch-type systems are seeking advanced solutions without transitioning to in-line equipment. The Aquastorm 50 addresses this need by integrating in-line level performance into a compact batch footprint.
Overview

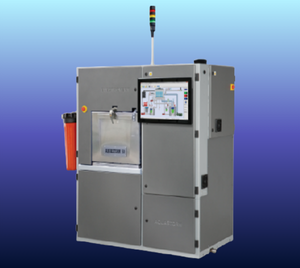

The Electrovert Aquastorm 50 is a batch-type PCB cleaner designed for manufacturers requiring enhanced cleaning capabilities without the space demands of an in-line system. Leveraging the same core technologies as the Aquastorm 100 and 200, this system offers high-performance cleaning using a Jet Impact Cleaning (JIC) spray system that delivers omni-directional fluid force to remove flux residues effectively. The Intelligent Rinse Control ensures precise rinse water conductivity through real-time monitoring, enabling users to define cleaning cycles by rinse purity (down to 1 µS) or cycle count — all while conserving water.
Features
- Jet Impact Cleaning (JIC): Multi-angle spray system creates dynamic energy for effective residue removal
- Batch Footprint: High-end cleaning performance in a space-saving design
- Shared Technology: Inherits cleaning innovations from Aquastorm 100 & 200 in-line systems
- Intelligent Rinse Control: Monitors rinse water conductivity in real-time for optimal performance
- Cycle Flexibility: Define cycles by conductivity target (e.g., 1 µS) or number of rinse cycles
- Water Efficiency: Advanced rinse system conserves water without compromising cleanliness
Specifications
- Equipment Type Batch PCB Cleaner
- Cleaning Method Jet Impact Cleaning (JIC)
- Application Type Batch-based, with in-line level technology
- Rinse Control Intelligent Rinse Control (target down to 1 µS)
- Cycle Configuration By rinse water cleanliness or number of cycles
- Inherited Technology Aquastorm 100 & 200 core system features
- Water Efficiency High — designed to reduce water consumption
