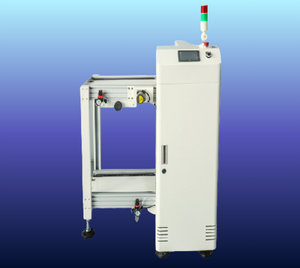

LEAPTECH AUTOMATIC LOADER
Efficient PCB Loading for SMT and Auto Insertion Lines The LEAPTECH AUTOMATIC LOADER is designed for the automated loading of PCBs onto PCB assembly lines such as SMT or Auto Insertion processes. Featuring a PLC control system and an LED TFT touch screen control panel, this loader enhances production efficiency with user-friendly controls and robust safety features.
Overview
The loader offers four-step pitch selection (10, 20, 30, 40 mm) and supports two magazines loading capacity. Built with a special anti-clamping plate structure and fool-proof design, it ensures safe and reliable operation. The unit's direction can be configured for left-to-right or right-to-left workflows and is compliant with SMEMA standards.
Features
- Automated PCB Loading: For SMT and Auto Insertion lines.
- Control System: Reliable PLC control with LED TFT touch screen panel.
- Pitch Selection: Four-step pitch selection - 10, 20, 30, 40 mm.
- Magazine Capacity: Supports 2 magazines for continuous loading.
- Safety Features:
- Anti-clamping plate structure.
- Fool-proof design for operational safety.
- Direction Options: Configurable for left-to-right or right-to-left operations.
- Compliance: Meets standard SMEMA interface requirements.
Specifications
- Operation Type: Automatic PCB loader
- Control: PLC with LED TFT touch screen
- Pitch Options: 10, 20, 30, 40 mm
- Magazine Capacity: 2 magazines
- Safety: Anti-clamping plate, fool-proof mechanism
- Direction: Left to right / Right to left (optional)
- Standard: SMEMA compliant
