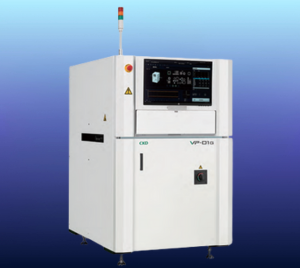

OMRON 3D SPI – VP - 01G (CKD)
Advanced Solder Paste Inspection for Process Optimization The OMRON VP-01G is a 3D Solder Paste Inspection (SPI) machine designed to analyze and optimize printing conditions, effectively preventing printing defects by detecting faults early in the process. Equipped with diagonally positioned 3D projectors and a camera that captures solder paste images using stripe pattern lighting, the VP-01G ensures high-precision inspection.
Overview
Optimized for factory automation, the VP-01G integrates multiple automation features such as Auto Program Launch, Bad Mark Communication, Closed Loop, and AOI Link. For enhanced quality and productivity, the machine offers SPC tools, line quality management, and statistical displays like X-bar-R / X-bar S Display alongside detailed log outputs.
Features
- Printing Defect Prevention: Detects faults and optimizes solder paste printing conditions.
- 3D Imaging: Diagonal 3D projectors with stripe pattern light capture for accurate inspections.
- Factory Automation Ready:
- Auto Program Launch
- Bad Mark Communication
- Closed Loop Integration
- AOI Link
- Quality & Productivity Tools:
- Statistical Process Control (SPC)
- Line Quality Management
- X-bar-R / X-bar S Displays
- Log Information Output
Specifications
- Inspection Type: 3D Solder Paste Inspection (SPI)
- Imaging: Stripe pattern light with diagonal 3D projectors
- Automation: Auto Program Launch, Bad Mark Communication, Closed Loop, AOI Link
- Quality Control: SPC, X-bar-R / X-bar S, Log Output
- Productivity: Line quality management tools
