SEQUENCE CONTROLLER AND PROCESS MONITORING
DEPRAG’s controllers and monitoring systems offer unmatched precision, control, and traceability for modern screwdriving operations. Integrated into electronic screwdriving systems, they enhance process reliability, data recording, and operator functionality.
Overview

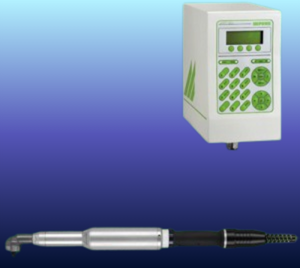

A screwdriver alone cannot ensure precision in modern industrial assembly—DEPRAG’s sequence and process monitoring controllers are critical for optimizing performance. These intelligent control units manage screwdriving torque and speed based on programmed parameters, monitor real-time feedback, and deliver full process traceability. Systems such as AST5, AST11, AST30-31, and AST40 support different drive technologies, from EC motors to EC-Servo systems. The Function Controllers (FC) further enhance quality by overseeing each individual tightening operation, ensuring process completion and fault prevention in manual screw assemblies.
Features
- High Precision Control: Accurately manages torque, speed, and angle per task requirement
- Real-Time Monitoring: Evaluates signals from motor current or integrated transducers
- Operator Interface: Supports visual alerts, control prompts, and process feedback
- Comprehensive Data Logging: Full documentation for traceability and quality assurance
- Flexible Integration: Compatible with various DEPRAG electric and EC-Servo screwdrivers

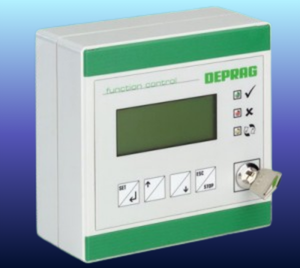

- Function Controller (FC): Ensures every screw connection is completed accurately
- Improved Process Reliability: Monitors each tightening operation to avoid missing screws or faulty torque
Specifications
- Controller Models: AST5, AST11 (motor-current based); AST30-31, AST40 (transducer-based)
- Drive Compatibility: Supports EC electric and EC-Servo screwdrivers
- Monitoring Type: Torque, angle, and speed control via current or sensor feedback
- Function Controller (FC): Available for manual assembly verification
- System Feedback: Visual and digital status indication for each process
- Documentation Output: Stores and exports tightening data for QA teams
- Applications: Manual assembly, semi-automated lines, and smart manufacturing
