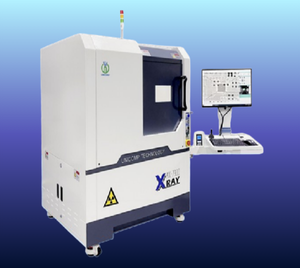

UNICOMP X-RAY Inspection Machine – AX7900
High-Resolution Multi-Function X-ray Inspection The UNICOMP AX7900 is a high-resolution X-ray inspection system featuring a 90KV 5μm X-ray tube and FPD Detector, designed for versatile and precise inspection applications. Its multi-function workstation supports XY multi-axis movement and optional ±60° tilt motion for comprehensive inspection angles.
Overview
The AX7900 is equipped with a Z-axis movement system for the X-ray tube and FPD detector, enabling flexible magnification and field-of-view (FOV) adjustments. A convenient target point positioning system and the multi-function DXI image processing system with XY programming allow for automated multiple image inspection routines.
Features
- High-Resolution Imaging: 90KV X-ray tube with 5μm resolution.
- FPD Detector: Ensures high-quality image capture.
- Multi-Axis Movement: XY standard movement with optional ±60° tilt.
- Z-Axis Flexibility: Adjustable magnification and FOV via Z-axis control.
- Automated Routines: DXI image processing system with programmable XY routines.
- Target Point System: Simplifies precise positioning of inspection areas.
- Large Detection Area:
- Max loading area: 420mm x 420mm
- Max detection area: 380mm x 380mm
- Up to ~300X system magnification.
Specifications
- X-ray Tube: 90KV, 5μm resolution
- Detector: FPD (Flat Panel Detector)
- Movement: XY multi-axis, optional ±60° tilt, Z-axis for magnification/FOV
- Inspection Software: Multi-function DXI image processing with XY programming
- Max Loading Area: 420mm x 420mm
- Max Detection Area: 380mm x 380mm
- Magnification: ~300X
