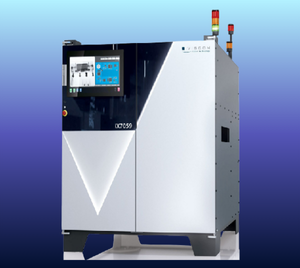

VISCOM Inline 3D Inspection of Heavy Inspection Objects with Maximum Precision – iX7059
Maximum Precision for Large, Heavy Assemblies The VISCOM iX7059 product line sets a new standard for fast, high-precision inline X-ray inspection of large, heavy, and solid assemblies, whether encased or complete models. This system is designed to ensure 100% quality assurance in demanding industries like e-mobility, new energies, and telecommunications.
Overview
The iX7059 features a special transport system that enables seamless handling of heavy inspection objects on workpiece carriers or soldering frames supporting weights up to 40 kg — a unique advantage in its class. The system is powered by 130 kV X-rays, with an optional 160 kV upgrade, and provides fast inspection program creation via 3D analysis and an IPC-compliant AXI inspection library.
Features
- High-Precision 3D Inspection: Designed for large, heavy, and solid assemblies.
- Weight Capacity: Inspects objects weighing up to 40 kg.
- Powerful X-rays: Standard 130 kV, optional 160 kV for enhanced imaging.
- Advanced Transport System: Handles assemblies on workpiece carriers or soldering frames.
- Fast Programming: Quick setup with 3D analysis and IPC-compliant AXI library.
- Optimized Verification: Integrated verification for maximum inspection program optimization.
Specifications
- Inspection Type: Inline 3D X-ray Inspection (AXI)
- Weight Capacity: Up to 40 kg per object
- X-ray Power: 130 kV (standard), 160 kV (optional)
- Programming: 3D analysis, IPC-compliant AXI inspection library
- Industries: E-mobility, new energies, telecommunications
- Optimization: Integrated verification for efficient program tuning
