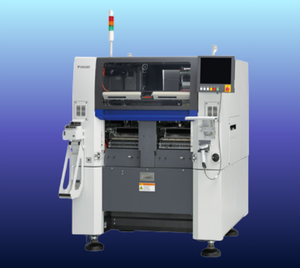

Yamaha I-CUBE 10 (YRH-10)
The Yamaha I-CUBE 10 (YRH-10) is a high-speed, flexible mounter designed for both super-tiny components and medium-sized odd-shaped components. Equipped with a scan camera, it minimizes the operation distance from pickup to mounting, thereby enhancing productivity and accuracy. Its robust capabilities ensure precision mounting even in complex manufacturing requirements.
Overview
The I-CUBE 10 (YRH-10) combines high-speed mounting with superior accuracy, delivering ±15μm (Cpk≧1.0) precision. Designed for versatility, it supports large PCBs up to L330 x W250mm and features Yamaha's intelligent feeder system for improved pickup accuracy. Coupled with the Multiple Accuracy Compensation System (MACS), the I-CUBE 10 ensures consistent high-accuracy performance, optimizing both yield and throughput.
Features
- High-Speed & High-Accuracy: Mounting precision of ±15μm (Cpk≧1.0).
- CPH10,800: Exceptional speed when die is supplied from wafer (under optimum conditions).
- Wide Component Range: Capable of handling super-tiny to medium odd-shaped components.
- Scan Camera Integration: Reduces operation distance, boosting productivity.
- Large PCB Support: Handles boards up to L330mm x W250mm.
- Intelligent Feeder Compatibility: Enhances tape reel component pickup accuracy.
- MACS System: Multiple Accuracy Compensation System ensures high-accuracy pickup and placement.
Specifications
- Model: I-CUBE 10 (YRH-10).
- Mounting Accuracy: ±15μm (Cpk≧1.0).
- Mounting Speed: 10,800 CPH (with die supplied from wafer).
- PCB Size Capability: Up to L330mm x W250mm.
- Component Handling: From super-tiny to medium-sized odd-shaped components.
- Camera: Integrated Scan Camera.
- Feeder: Compatible with intelligent feeders.
- Compensation System: Multiple Accuracy Compensation System (MACS).
- Application: Die bonding, SMT odd-shaped component mounting.
