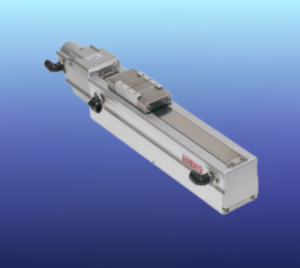

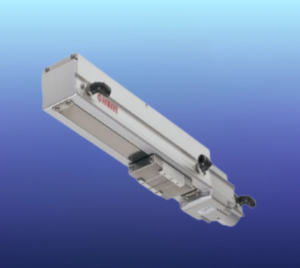

Yamaha Single axis robot Flip X Series
The Flip X Series is a versatile electric actuator developed by Yamaha, composed of a robust AC servomotor, ball screw, belt, linear guide, and base. Designed as a general-purpose single-axis robot, it is ideal for automation tasks such as assembly and inspection.
Overview
This actuator integrates a highly rigid ball screw and linear guide, ensuring long-lasting performance and precision. It also features a resolver-based position detector with excellent resistance to harsh environments, making it highly reliable across a range of industrial settings. Its robust design helps significantly reduce maintenance and control costs for users.
Features
- General-purpose electric actuator for various automation tasks
- Built-in AC servomotor with high torque and stability
- High-rigidity ball screw and linear guide for long service life
- Belt-driven transmission with smooth motion control
- Resolver-type position sensor — resistant to heat, dust, and vibration
- Compact design with excellent structural rigidity
- Low-maintenance and highly durable
- Supports fast, accurate positioning and repeatability
- Ideal for both standalone and multi-axis configurations
Specifications
- Drive System: AC servomotor with belt and ball screw mechanism
- Stroke Length: Multiple options (commonly up to 850 mm or more)
- Maximum Speed: Up to 1200 mm/s (depending on model and stroke)
- Repeatability: ±0.02 mm
- Payload: Model-dependent, supports medium-duty operations
- Position Detector: Resolver (high environmental resistance)
- Installation Orientation: Horizontal or vertical
- Typical Applications: Assembly line automation , Component inspection , Transfer and positioning tasks , Multi-axis combinations for gantry systems
