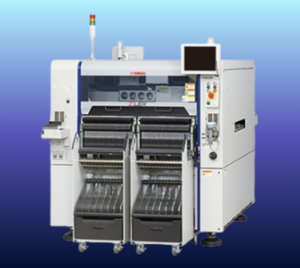

Yamaha YSM20R
High-end High-Efficiency Modular Placement System The YSM20R from Yamaha sets a new benchmark in high-efficiency modular placement, offering the world’s fastest mounting speed in its class — 5% faster than its predecessor, the YSM20. Equipped with an advanced wide-scan camera and enhanced component adaptability, it delivers unmatched performance in both speed and precision for modern SMT production lines.
Overview
The Yamaha YSM20R is a cutting-edge solution built for high-speed, high-efficiency PCB assembly. With a rated placement speed of up to 95,000 CPH (Premium Version) and a choice of two head variants (HM and FM), it supports a wide range of components from 03015 to 55×100 mm, and heights up to 28 mm. Its newly developed features such as the Auto Loading Feeder (ALF) and the sATS30NS Auto Tray Sequencer (ATS) minimize operator dependency and downtime, enabling non-stop productivity and reliability for demanding environments.
Features
- World’s Fastest in Class: 5% faster than YSM20 with rated speed up to 95,000 CPH (Premium Version)
- Advanced Camera Technology: New wide-scan camera improves component adaptability
- Head Variants: Two options — HM and FM — for flexible component handling
- Auto Loading Feeder (ALF): Automatically feeds tape components, reducing operator dependency
- sATS30NS Auto Tray Sequencer: Enables non-stop tray replacement for uninterrupted production
- Non-stop Feeder Carriage Exchange: Optional system for continuous operations without downtime
Specifications
- Model: Yamaha YSM20R
- System Type: High-Efficiency Modular Placement System
- Rated Speed: Up to 95,000 CPH (Premium Version)
- Component Range: 03015 to 55×100 mm, up to 28 mm height
- Head Variants: HM / FM
- Feeder System: Auto Loading Feeder (ALF)
- Tray System: sATS30NS Auto Tray Sequencer
- Optional Feature: Non-stop Feeder Carriage Exchange
- Application: High-mix to high-volume SMT production
