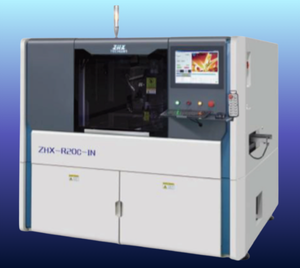

ZHX-R20C - IN Line Radial Component Insertion Machine
A high-speed, precision-driven in-line radial component insertion solution designed for modern PCB assembly lines. With advanced servo control, intelligent alignment features, and user-friendly interface, the ZHX-R20C is built for reliable, high-throughput automated production.
Overview
The ZHX-R20C is a fully computerized radial component insertion machine, engineered for in-line production environments. Featuring an English interface, this system is highly user-friendly and supports insertion direction from 0° to 360° with 1° increments. Equipped with imported precision ball screws and AC servo motors, it delivers positioning accuracy of less than 0.001 mm. A built-in machine vision system and intelligent fiducial correction ensure high alignment precision across all insertion points.
Features
- Full English computerized interface
- Insertion direction adjustable from 0° to 360°, with 1° increment
- Imported precision ball screw and AC servo motor drive
- Positioning accuracy < 0.001 mm
- Integrated machine vision system for improved alignment
- Intelligent fiducial correction functionality
- Dual control interface: Front & Rear touchscreen
- USB port for fast data transmission
- High-speed output up to 22,000 CPH
- Supports in-line production for high-efficiency operations
Specifications
- Model: ZHX-R20C
- Insertion Type: Radial component
- Insertion Direction: 0°–360° (1° increments)
- Accuracy: < 0.001 mm
- Motor Type: AC servo motor
- Drive: Precision ball screw
- Vision System: Yes, with multi-fiducial support
- Interface: Dual touchscreen (Front & Rear)
- Data Transfer: USB port
- Speed: Up to 22,000 components per hour (CPH)
- Production Mode: In-line compatible
