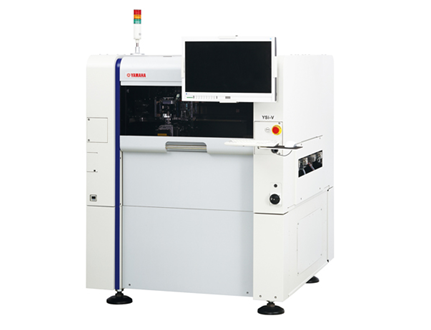

“Yamaha” YSi–V
High-end Hybrid Optical Inspection System
- Performs 2 Dimensional inspections, 3 Dimensional inspections, and 4-direction oblique image inspections all in one unit! It has more than double the inspection capability of ordinary inspection systems.
- 2D High-speed, high-resolution 2-dimensional inspections
- 3D Height, and sloped surface 3-dimensional inspections (option)
- 4D 4-way angular camera (option)
- Option of 5MP or 12MP Digital Cameras
- Highest selling 3D AOI in Japan

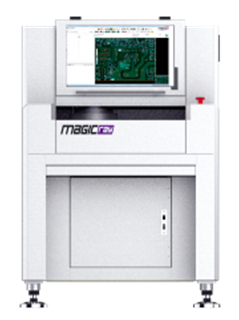

“MagicRay” 2D AOI
Offline AOI V8 series
- High precision and high speed offline AOI, V8 uses linear module with stat-of-the-art accuracy and repeatability with High stability marble platform.
- Algorithm based pixel counting inspection technology makes it a comparable machine with all major brands in the world.
- Auto conveyor width adjustment feature

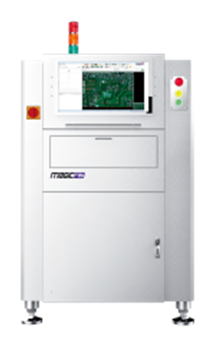

Inline AOI V5000 series
- For SMT PCBA pre-reflow, post-reflow inline inspection
- Granite platform, greatly improve machine precision and stability
- Programmable RGB+W LED lighting source
- Telocentric lens with constant magnification and low distortion response
- Available in 5MP and 12MP camera versions.
- Single-lane and Dual-lane conveyor configurations also available
Double side inspection Inline AOI V5300
- Simultaneously inspect the top and bottom of PCB in one Machine
- Save time for PCB flipping
- Anti-dust protection and automatic vacuum cleaning system
- Powerful inspection algorithm, easily handle all kinds of odd Shape components
- Warp compensation solution

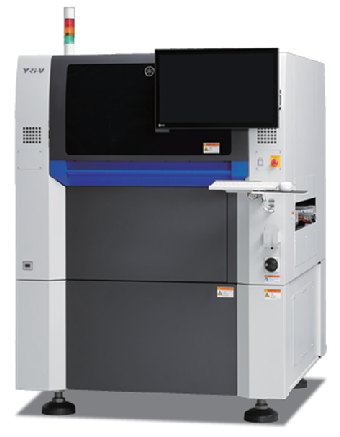

YRi-V
- Multi-purpose optical inspection systems for all markets that realize super high-speed and high-accuracy 3D/4D inspections. The mounted coaxial lighting and 5μm lenses added to the lineup support high-accuracy inspections in the device sector.
- Super high-speed 3D inspections. 56.8 cm2/sec, Super high-accuracy 3D/4D inspections, 8 way projector & 4-way oblique imaging inspections, 20MP 4-angle camera.
- Device inspections Super high-resolution 5µm/coaxial lighting. The 8-way projector added to the lineup has enabled inspecting 0201mm components mounted adjacently. The projector reduces the number of blind spots for large components, realizing high-accuracy 3D/4D inspections. The increased 3D/4D measurement range enables 3D/4D inspections of components with heights of up to 25mm.

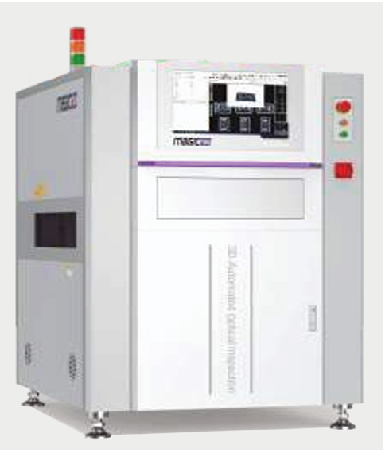

Magicray 3D AOI - Cube
- 3D AOI Cube series boasts cutting edge positioning technology and advanced feature analysis algorithms, making it ideal for high speed, high precision inspections of SMT components in SMT pre-reflow & post reflow process.
- The cube series eliminates shadow blinds spots and accurately captures 3D component shapes for optimal results with its state of the art multi-fringe projection technique.
- The powerful combination of three point check software & SPC data analysis quickly identifies the roots cause of defects.

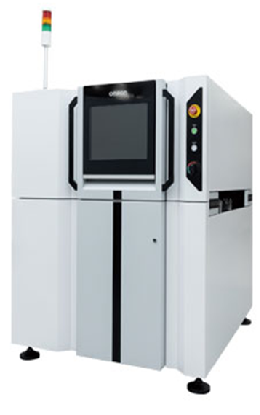

OMRON 3D Automated Optical Inspection – VT S10 SERIES
- The VT-S10 AOI platform combines advanced AI-assisted programming with innovative Omron technology to extensively analyze solder joints. By utilizing quantitative measurements that adhere to IPC standards, the VT-S10 Series machines help ensure the manufacturing of high quality products. Bundled with Omron's robust offline software suite, users are able to monitor inspection results, make quick adjustments, and keep production lines running.
- VT-S1040 AOI MDMC lighting and 4 additional Multi-Phase-Shift (MPS) projectors, to provide accurate 3D measurements for every solder joint and component.
- VT-S1080 AOIOmron's complete optical inspection solution, Outfitted with MDMC lighting, 4MPS projectors and 4x 5MP angled cameras to provide the most thorough inspection
